Technical Specifications
Molex 35021-1201 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Current Rating | 2A |
| Gender | Male |
| Halogen Free | Low Halogen |
| Insulation | Non-Insulated |
| Length | 5.4mm |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Orientation | Right Angle |
| Package Quantity | 90000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | 35021 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 125V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 35021-1201 Datasheet
Download the complete datasheet for Molex 35021-1201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

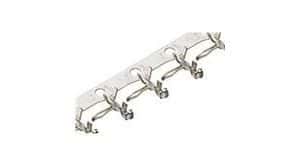

Product Images
