Right-angle board-to-board connector featuring 14 female socket contacts arranged in a single row with a 2.54mm pitch. This plug-style connector offers a 2.5A current rating and 250V voltage rating, with solder termination and a white, low-halogen insulator. Designed for through-hole mounting, it operates within a temperature range of 0°C to 75°C.
Voltage Rating250V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 38-00-1344 technical specifications.
General
| Color | White |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2.5A |
| Depth | 7.87mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Length | 35.46mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1458 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | KK® 4455 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 38-00-1344 Datasheet
Download the complete datasheet for Molex 38-00-1344 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

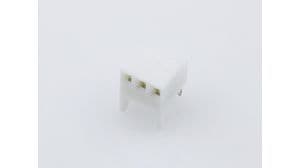

Product Images
