Headers & Wire Housings KK 100 PCB Assy Btm Assy Btm 10 Ckt Tin
Voltage Rating250V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 38-00-1400 technical specifications.
General
| Color | White |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 2.5A |
| Depth | 7.7mm |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Mount | Through Hole |
| Number of Circuits | 9 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1944 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | KK® 4455 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 38-00-1400 Datasheet
Download the complete datasheet for Molex 38-00-1400 to view detailed technical specifications.
No datasheet is available for this part.

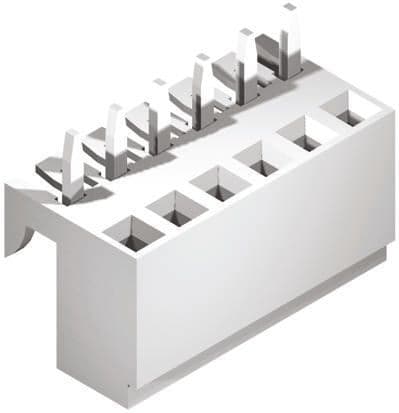

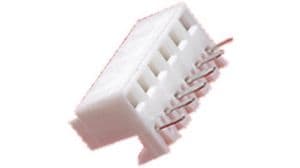

Product Images
