This 20-position female header features a contact material of bronze and a contact plating of tin. It has a current rating of 2.5A and a voltage rating of 250V. The header is designed for through-hole mount and has a pitch of 2.54mm. It is packaged in a tray with 972 pieces per package and is compliant with RoHS regulations.
Voltage Rating250V
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 38-00-1440 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 2.5A |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Mount | Through Hole |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 972 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 4455 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 38-00-1440 Datasheet
Download the complete datasheet for Molex 38-00-1440 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

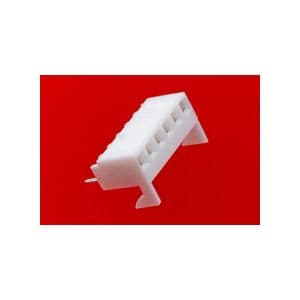

Product Images
