3-position, 1-row ZIF/LIF connector with straight orientation and a 9.53mm pitch. Features brass contacts with tin-lead plating, rated for 300V and 25A, accommodating wire gauges from 24AWG to 12AWG. Constructed from PBT material with a black housing, this panel-mount connector operates between 0°C and 110°C and boasts a UL94 V-0 flammability rating.
Voltage Rating300V
Current Rating25A
MountingPanel
Quick Jump:
Technical Specifications
Molex 38721-6703 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Tin, Lead
Current Rating
25A
Depth
16.8mm
Flammability Rating
UL94 V-0
Housing Color
Black
Lead Free
Lead Free
Length
49.7mm
Material
PBT
Max Operating Temperature
110°C
Min Operating Temperature
0°C
Mount
Panel
Number of Circuits
3
Number of Contacts
3
Number of Poles
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
300
Packaging
Tray
Pitch
9.53mm
Reach SVHC Compliant
Unknown
Series
38721
Termination
Solder
Voltage Rating
300V
DC Rated Voltage
300V
Width
15.7mm
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
Molex 38721-6703 Datasheet
Download the complete datasheet for Molex 38721-6703 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

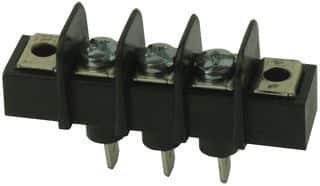

Product Images
