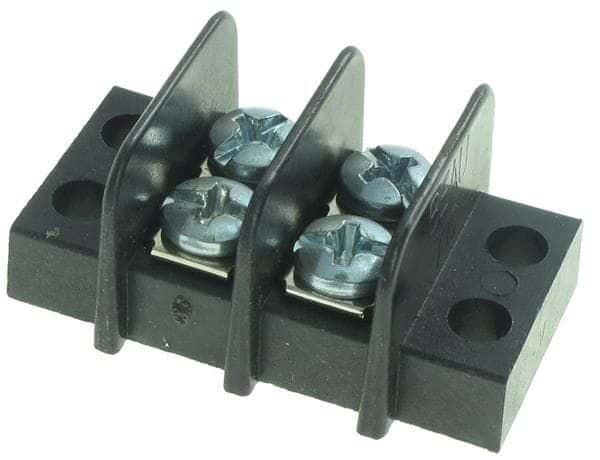

2-circuit barrier strip connector with straight orientation, featuring screw termination. Rated for 300V and 20A, it accommodates wire gauges from 24AWG to 22AWG. Constructed with a black thermoplastic housing and brass/steel contacts with nickel plating, this connector offers UL and CSA approvals and a UL94 V-0 flammability rating. Designed for panel or chassis mounting, it measures 35.7mm in length, 22.4mm in width, and 16mm in depth with a 9.53mm pitch.
Package0102
Voltage Rating300V
Current Rating20A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Molex 38760-0102 technical specifications.
General
Approvals
UL, CSA
Package/Case
0102
Color
Black
Contact Material
Brass, Steel
Contact Plating
Nickel
Current Rating
20A
Depth
16mm
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
35.7mm
Material
Thermoplastic
Mount
Panel, Chassis
Number of Circuits
2
Number of Contacts
4
Number of Poles
2
Number of Positions
2
Number of Rows
2
Number of Wire Entries
4
Orientation
Straight
Package Quantity
1
Packaging
Tray
Pitch
9.53mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Beau™ 38760
Terminal Finish
Zinc
Terminal Material
Steel
Termination
Screw
Voltage Rating
300V
Width
22.4mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 38760-0102 Datasheet
Download the complete datasheet for Molex 38760-0102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
