Barrier strip terminal block featuring 12 positions, 2 rows, and 24 contacts. Rated for 300V and 20A, it utilizes brass contacts with chromate and nickel plating, and steel terminals with zinc finish. The thermoplastic housing is black, UL94 V-0 rated, and designed for panel or chassis mounting. Operating temperature range is 0°C to 110°C, with screw termination supporting wire gauges from 22AWG to 24AWG. This RoHS compliant component is UL and CSA approved.
Voltage Rating300V
Current Rating20A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Molex 38780-0112 technical specifications.
General
| Approvals | UL, CSA |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Chromate, Nickel |
| Current Rating | 20A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 152.4mm |
| Material | Thermoplastic |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | 0°C |
| Mount | Panel, Chassis |
| Number of Circuits | 12 |
| Number of Contacts | 24 |
| Number of Poles | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Number of Wire Entries | 24 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 11.11mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 38780 |
| Terminal Finish | Zinc |
| Terminal Material | Steel |
| Termination | Screw |
| Voltage Rating | 300V |
| Width | 28.6mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 38780-0112 Datasheet
Download the complete datasheet for Molex 38780-0112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

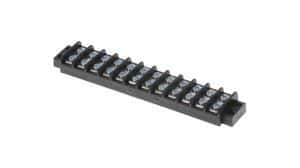

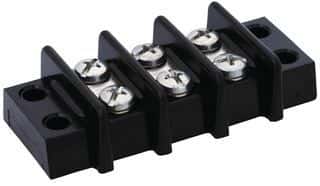

Product Images
