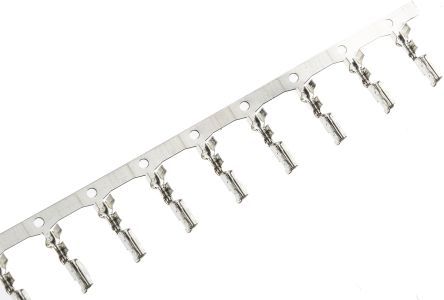

Female signal terminal for cable mounting, featuring bronze contacts with tin plating. This component offers a 9A current rating and 600V voltage rating, supporting wire gauges from 24AWG to 18AWG. Designed with a 2.5mm pitch, it has a straight orientation and operates within a temperature range of -40°C to 105°C. The terminal is RoHS compliant and packaged in tape and reel for efficient assembly.
Voltage Rating600V
Current Rating9A
MountingCable
Quick Jump:
Technical Specifications
Molex 39-00-0021 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin, Bronze
Contact Type
Signal
Current Rating
9A
Depth
3.5mm
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Low Halogen
Height
3.6mm
Length
12.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Circuits
20
Number of Rows
2
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Pitch
2.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SPOX
Shielding
Unshielded
Termination
Crimp
Voltage Rating
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
