Female push-on terminal for cable mounting, featuring a straight orientation and single contact. Constructed with brass contact material and plated with tin, copper, and brass, it supports a current rating of 9A and a voltage rating of 600V. Designed for wire gauges from 24AWG to 18AWG, this RoHS compliant component operates within a temperature range of -40°C to 105°C. Its dimensions are 14.7mm length, 4.5mm height, and 3.6mm depth, with a 2.5mm pitch. Packaged on tape and reel, this unshielded terminal is suitable for assembly applications.
Voltage Rating600V
Current Rating9A
MountingCable
Quick Jump:
Technical Specifications
Molex 39-00-0038 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin, Copper, Brass |
| Contact Type | Signal |
| Current Rating | 9A |
| Depth | 3.6mm |
| Gender | Female |
| Height | 4.5mm |
| Length | 14.7mm |
| Max Current Rating | 9A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Pitch | 2.5mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 5556 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-00-0038 Datasheet
Download the complete datasheet for Molex 39-00-0038 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

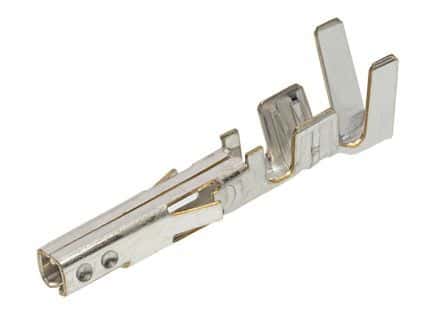

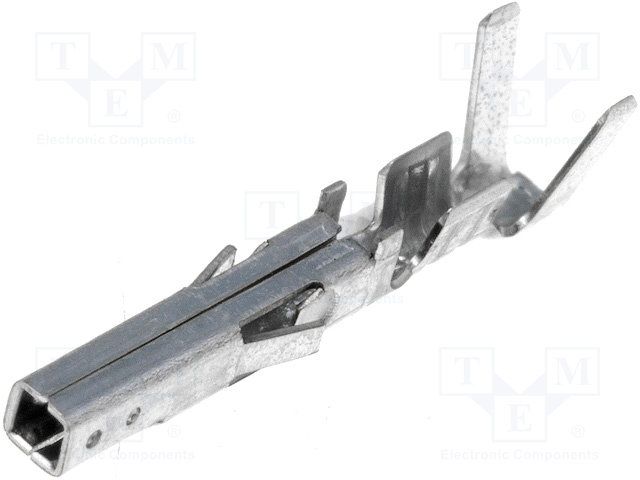

Product Images
