Male signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed with brass contact material and tin plating over copper and brass, it supports wire gauges from 28AWG to 22AWG. This low halogen, lead-free component offers a 9A current rating and a 600V voltage rating, with dimensions of 16.8mm length, 2.3mm depth, and 2.3mm height.
Voltage Rating600V
Current Rating9A
MountingCable
Quick Jump:
Technical Specifications
Molex 39-00-0049 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper, Brass |
| Contact Type | Signal |
| Current Rating | 9A |
| Depth | 2.3mm |
| Gender | Male |
| Halogen Free | Low Halogen |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 16.8mm |
| Max Current Rating | 9A |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 5558 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 28AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-00-0049 Datasheet
Download the complete datasheet for Molex 39-00-0049 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

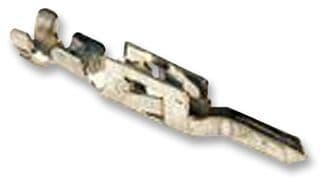

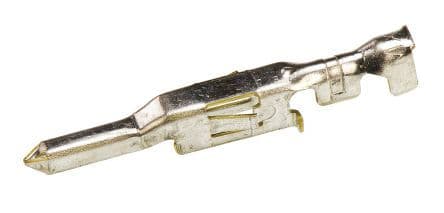

Product Images
