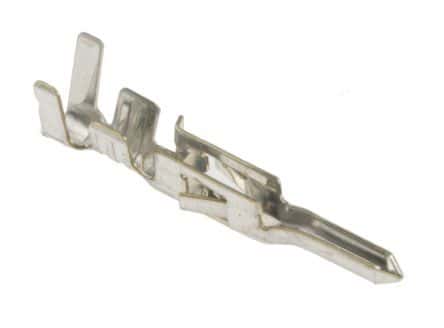

Low halogen, lead-free wire terminal for signal applications. Features a straight, male contact orientation with brass material and tin/copper/brass plating. Rated for 9A current and 600V AC, it accepts 16AWG wire with a 3.1mm diameter. This crimp-style terminal has a 4.5mm height, 3.6mm depth, and 16.8mm length, designed for cable mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 39-00-0082 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 39-00-0082 technical specifications.
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper, Brass |
| Contact Type | Signal |
| Current Rating | 9A |
| Depth | 3.6mm |
| Gender | Male |
| Halogen Free | Low Halogen |
| Height | 4.5mm |
| Lead Free | Lead Free |
| Length | 16.8mm |
| Max Current Rating | 9A |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bag |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mini-Fit® Jr™ 5558 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire/Cable Diameter | 3.1mm |
| Wire/Cable Gauge | 16AWG |
| RoHS | Compliant |
