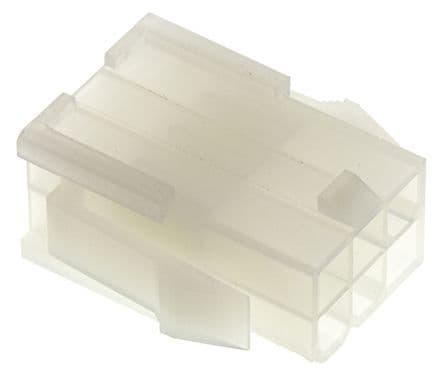

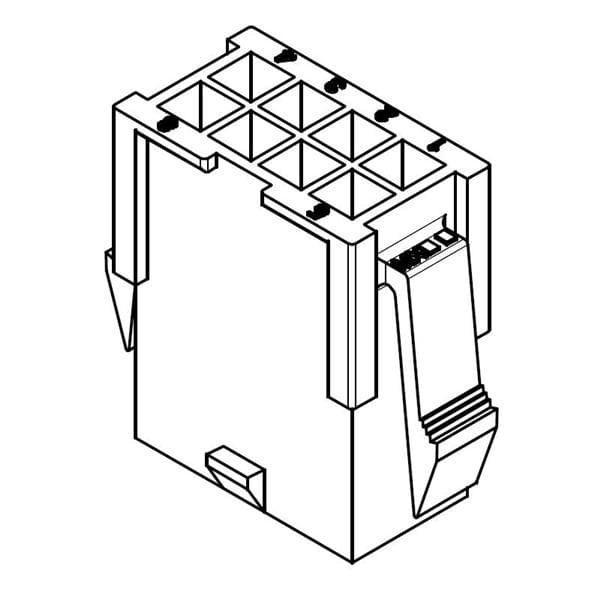

Rectangular power connector featuring 6 male pin contacts arranged in 2 rows with a 4.2mm pitch. This straight plug offers a 13A current rating and a 600V AC/DC voltage rating, with a 250V DC rating. Constructed from natural colored Nylon, it boasts a panel mount with snap-in capability and a crimp termination. Operating within a -40°C to 105°C temperature range, it is UL, CSA, and TUV approved, RoHS compliant, and UL94 V-2 flammability rated.
Voltage Rating600V
Current Rating13A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Molex 39-01-2061 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 23.9mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 11.6mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 19.2mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Panel, Snap in |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5559 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 250V |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-2061 Datasheet
Download the complete datasheet for Molex 39-01-2061 to view detailed technical specifications.
