Rectangular power connector featuring 10 contacts and a female receptacle design with crimp terminal termination. This straight, free-hanging, cable-mount connector operates at a maximum of 600V AC/DC and a 9A current rating. Constructed from natural/white nylon with a beige housing, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Operating within a -40°C to 105°C temperature range, this low halogen component is supplied in bulk packaging.
Voltage Rating600V
Current Rating9A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 39-01-2105 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural, White |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 9A |
| Depth | 19.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 15.1mm |
| Housing Color | Beige |
| Lead Free | Lead Free |
| Length | 22.2mm |
| Material | Nylon |
| Max Current Rating | 9A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5557 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Width | 15.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-2105 Datasheet
Download the complete datasheet for Molex 39-01-2105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

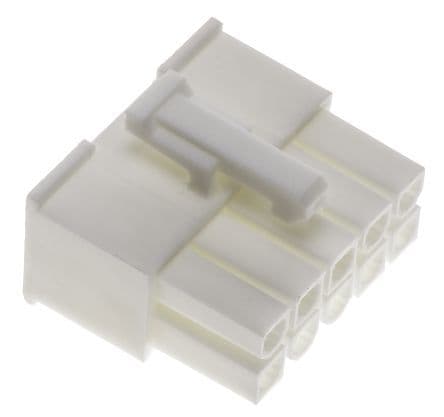

Product Images
