Rectangular power connector featuring 4 positions across 2 rows with a 4.2mm pitch. This female receptacle offers a straight, free-hanging, cable mount orientation and accepts crimp terminals. Rated for 8A current and 600V AC/DC, it operates within a temperature range of -40°C to 105°C. Constructed from low halogen nylon in a natural color, it supports wire gauges from 20 to 16 AWG and is RoHS compliant.
Voltage Rating600V
Current Rating8A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 39-01-3042 technical specifications.
General
| Body Material | Nylon |
| Color | Natural |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 8A |
| Depth | 19.6mm |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Height | 19.6mm |
| Housing Color | Natural |
| Length | 11.6mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 6500 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5557 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 11.6mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-3042 Datasheet
Download the complete datasheet for Molex 39-01-3042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

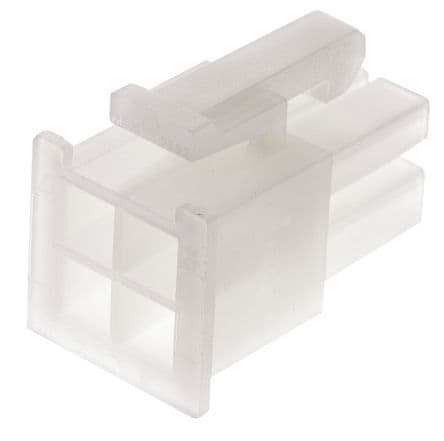

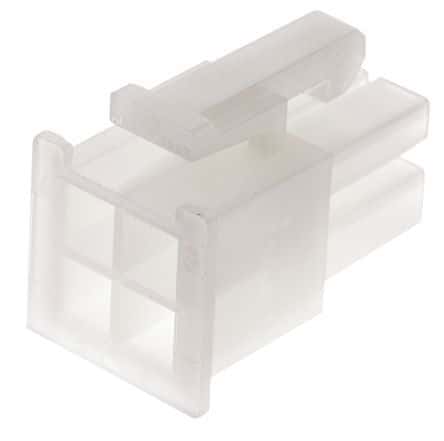

Product Images
