Technical Specifications
Molex 39-01-3043 technical specifications.
General
| Depth | 23.9mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 11.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Cable |
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 4.191mm |
| Series | AMPMODU |
| Width | 9.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-3043 Datasheet
Download the complete datasheet for Molex 39-01-3043 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

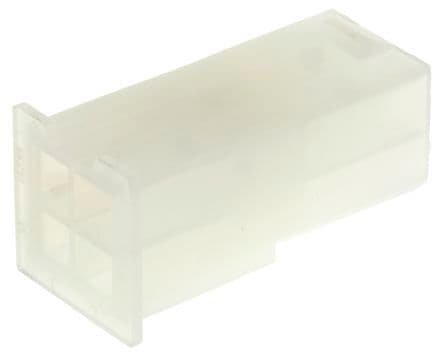

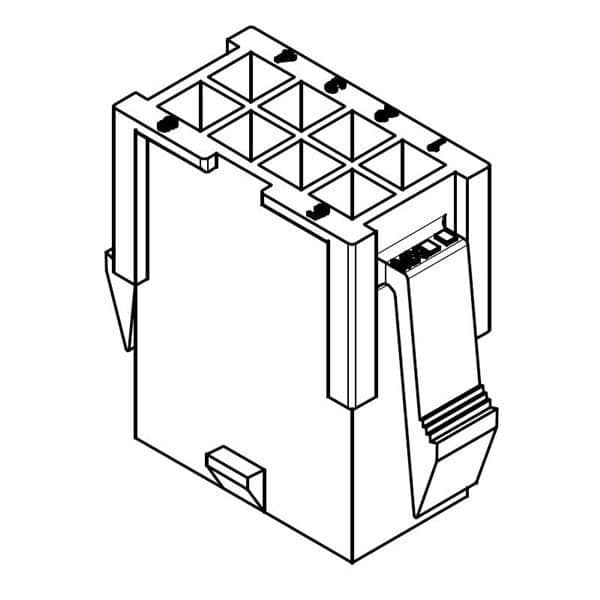

Product Images
