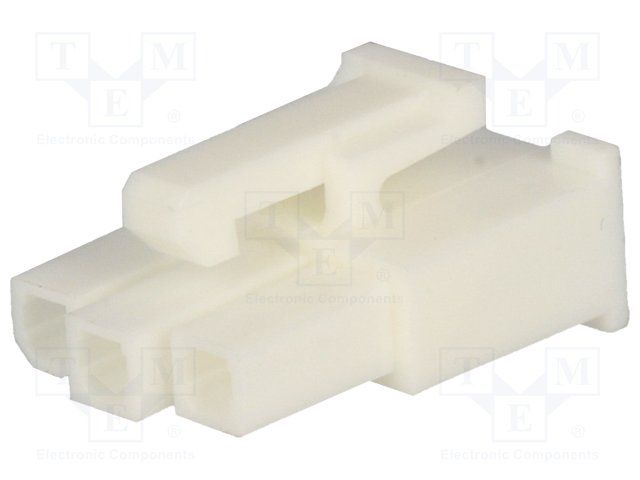

3-circuit, 3-position rectangular power connector featuring female socket contacts for crimp termination. Rated for 13A current and 600V AC/DC, this free-hanging, cable-mount receptacle operates from -40°C to 105°C. Constructed with a low halogen, lead-free housing in natural and white colors, it meets UL94 V-0 flammability standards and is RoHS compliant. Accommodates wire gauges from 20AWG to 16AWG.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 39-01-4031 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, TUV |
| Color | Natural, White |
| Contact Type | Female Socket |
| Current Rating | 13A |
| Depth | 20.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 10.2mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Length | 13.8mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mini-Fit® Jr™ 5557 |
| Termination | Crimp |
| Voltage Rating | 600V |
| Width | 10.2mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
| RoHS | Compliant |
