Rectangular power connector, 5 circuits, female receptacle with 5 female socket contacts. Features a 4.2mm pitch, straight orientation, and crimp termination. Rated for 13A current and 600V AC/DC, operating between -40°C and 105°C. Housing is natural color, UL94 V-2 flammability rated, and low halogen. Approvals include UL, CSA, and TUV.
PackageSIL
Voltage Rating600V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 39-01-4050 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | SIL |
| Color | Natural, White |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Current Rating | 13A |
| Depth | 19.6mm |
| Diameter | 4.2mm |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 7.39mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 22.2mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Mini-Fit® Jr™ 5557 |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Weight | 0.045856oz |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-01-4050 Datasheet
Download the complete datasheet for Molex 39-01-4050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

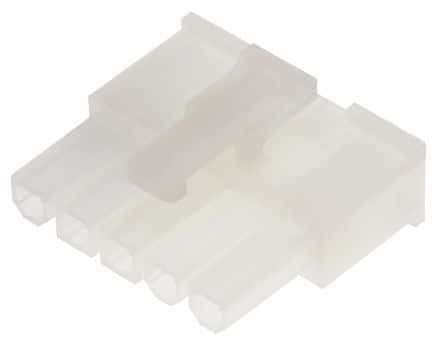

Product Images
