Rectangular power connector featuring 14 male contacts with brass and bronze construction, tin/lead plating, and solder termination. Rated for 6A current and 600V voltage, this straight, through-hole mount plug operates from -65°C to 105°C. The black housing is UL94 V-0 flammability rated, low halogen, and lead-free compliant, with UL, CSA, and TUV approvals.
Voltage Rating600V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-28-1143 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass, Bronze |
| Contact Plating | Tin, Lead |
| Current Rating | 6A |
| Depth | 2.34mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 8.13mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 101.19mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 5.5mm |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-28-1143 Datasheet
Download the complete datasheet for Molex 39-28-1143 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

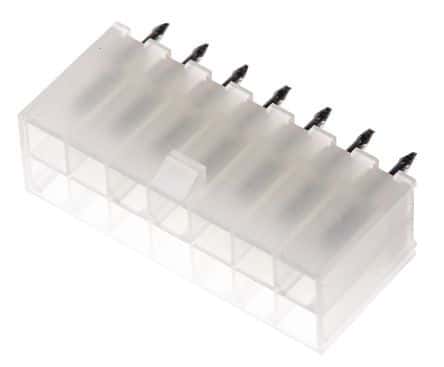

Product Images
