Rectangular power connector featuring 4 male pin contacts with brass construction and tin/copper plating. This straight, through-hole mount plug offers a 4.2mm pitch and 2 rows, accommodating 4 positions. Rated for 8A max current and 600V AC/DC, it operates from -40°C to 105°C and is UL94 V-0 flammability rated. Constructed from low halogen nylon in a natural housing color, it is RoHS compliant and lead-free.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-28-8040 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 9A |
| Depth | 11mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 12.8mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Lead Pitch | 4.2mm |
| Length | 10mm |
| Material | Nylon |
| Mating Cycles | 30 |
| Max Current Rating | 8A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 700 |
| Packaging | Tray |
| Pitch | 4.2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-28-8040 Datasheet
Download the complete datasheet for Molex 39-28-8040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

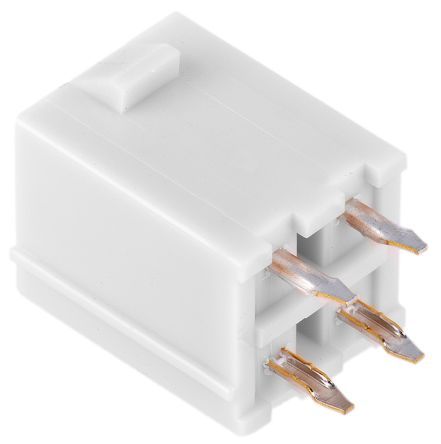

Product Images
