Power connector, straight orientation, 14 positions, 14 circuits, 2 rows, 4.2mm pitch, with male pin contacts made of gold-plated brass. Features a 6A current rating, 600V voltage rating, and operates within a -40°C to 105°C temperature range. Designed for through-hole mounting with solder termination. This low halogen, UL94 V-0 flammability rated component is RoHS compliant.
Voltage Rating600V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-28-9148 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 6A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-28-9148 Datasheet
Download the complete datasheet for Molex 39-28-9148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

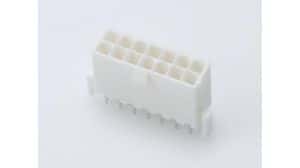

Product Images
