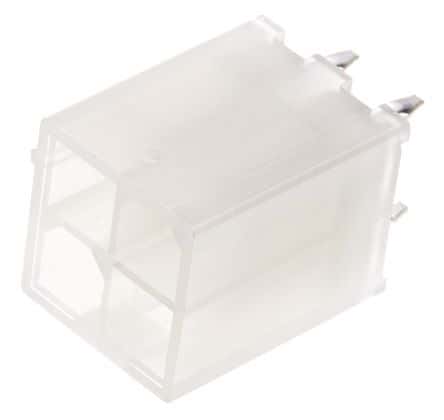

Rectangular power connector featuring 4 positions and 2 rows with a 4.2mm pitch. This male receptacle offers straight orientation and solder termination with gold-plated brass male pin contacts. Rated for 13A current and 600V AC/DC, it operates within a temperature range of -40°C to 105°C. The natural colored housing is lead-free and RoHS compliant, designed for through-hole mounting.
Voltage Rating600V
Current Rating13A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-29-0043 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 11mm |
| Gender | Male |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 2 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 700 |
| Packaging | Tray |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
