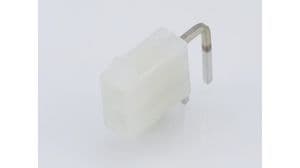

39-29-4029

2-Pos 4.2mm RA Header, Through Hole, 13A, 600V, Gold

2-contact, male wire-to-board header connector with a 4.2mm pitch. Features brass contacts with gold plating and a UL94 V-0 flammability rating. Through-hole mounting with a right-angle orientation, this connector supports a 13A current rating and 600V voltage rating. Constructed from brass, it operates within a temperature range of -40°C to 105°C and is RoHS compliant.

Voltage Rating600V

Current Rating13A

MountingThrough Hole

Quick Jump:

Technical Specifications

Molex 39-29-4029 technical specifications.

General

Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold
Current Rating	13A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Material	Brass
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Rows	2
Orientation	Right Angle
Package Quantity	600
Packaging	Bulk
Pitch	4.2mm
Plating	Tin
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	5.5mm
Series	5569
Termination	Solder
Voltage Rating	600V
