18-position, 2-row wire-to-board header with a 4.2mm pitch, designed for straight, solder termination. Features male pin contacts made of brass with gold plating, rated for 6A current and 600V AC/DC. The natural colored, low halogen housing has a UL94 V-0 flammability rating and operates within a -40°C to 105°C temperature range. This RoHS compliant connector is supplied in tray packaging.
Voltage Rating600V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-29-6188 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 6A |
| Depth | 11mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 12.8mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 39.4mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Ports | 1 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-6188 Datasheet
Download the complete datasheet for Molex 39-29-6188 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

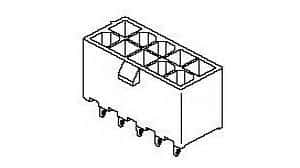

Product Images
