4-position, 2-row male pin header with a 4.2mm pitch, designed for through-hole, board mounting. Features brass male pin contacts with tin plating, rated for 8A current and 600V voltage. Operates within a temperature range of -40°C to 105°C, with a natural colored housing. This RoHS compliant component offers a straight orientation and solder termination.
Voltage Rating600V
Current Rating8A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 39-29-9043 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 8A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 12.8mm |
| Housing Color | Natural |
| Max Current Rating | 9A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole, Board |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-9043 Datasheet
Download the complete datasheet for Molex 39-29-9043 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

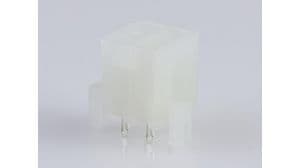

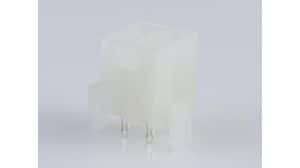

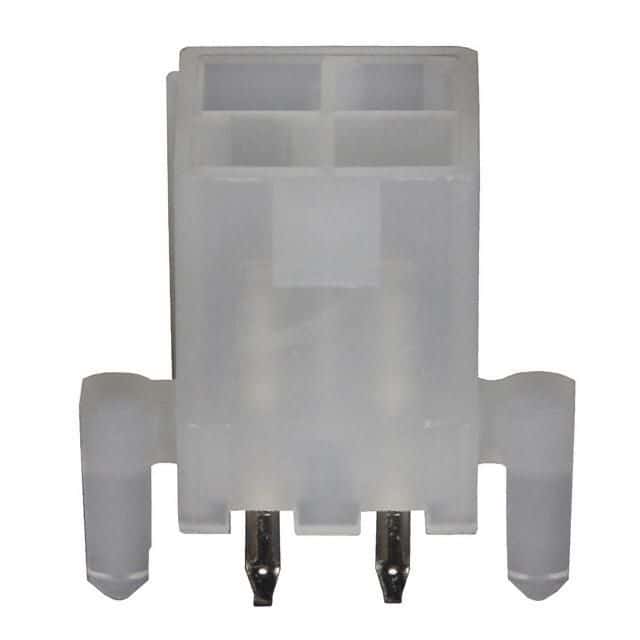

Product Images
