8-position, 2-row wire-to-board header with 4.2mm pitch. Features male pin contacts made of brass with tin plating, rated for 9A current and 600V AC/DC. Housing is natural colored, UL94 V-0 flammability rated, and low halogen. Through-hole mounting with straight orientation, supplied in tray packaging.
Voltage Rating600V
Current Rating9A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 39-29-9083 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 9A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Max Current Rating | 8A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole, Board |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 3120 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-9083 Datasheet
Download the complete datasheet for Molex 39-29-9083 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

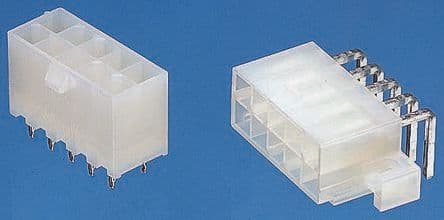

Product Images
