Rectangular power connector featuring 10 male contacts with brass construction and tin plating. This straight, through-hole mounted plug offers a 4.2mm pitch and 2 rows, supporting 10 circuits and 10 positions. Rated for 7A current and 600V AC/DC, it operates within a -40°C to 105°C temperature range. The natural colored housing is UL94 V-0 flammability rated and low halogen.
Voltage Rating600V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-29-9106 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Ports | 1 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-9106 Datasheet
Download the complete datasheet for Molex 39-29-9106 to view detailed technical specifications.
No datasheet is available for this part.

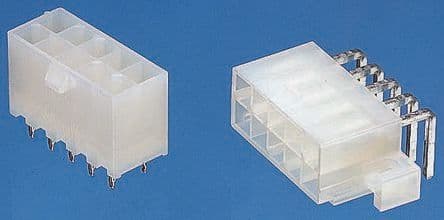

Product Images
