24-position, 2-row male pin header with 4.2mm pitch for vertical board mounting. Features brass male pin contacts with tin and copper plating, rated for 6A max current and 600V voltage. Housing is natural colored, low halogen, and UL94 V-0 flammability rated. Termination is solder, with operating temperatures from -40°C to 105°C.
Voltage Rating600V
Current Rating9A
MountingThrough Hole, Board
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Molex 39-29-9246 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Molex 39-29-9246 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 9A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 12.8mm |
| Housing Color | Natural |
| Max Current Rating | 6A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Through Hole, Board |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 4.2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-29-9246 Datasheet
Download the complete datasheet for Molex 39-29-9246 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

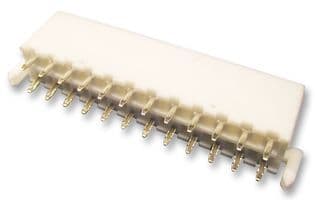

Product Images
