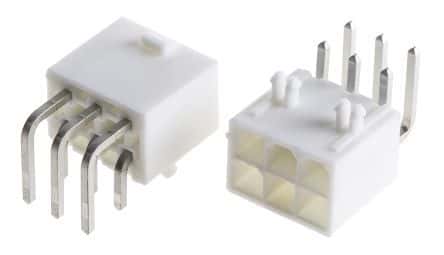

Rectangular power connector featuring 6 male pin contacts with a 4.2mm pitch. This right-angle, through-hole mount plug offers a 13A current rating and a 600V AC/DC voltage rating. Contacts are brass with gold material and tin over copper plating for termination and mating. The natural colored nylon housing is UL94 V-0 flammability rated and operates between -40°C and 105°C.
Voltage Rating600V
Current Rating13A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 39-30-0060 technical specifications.
General
| Contact Finish - Mating | TIN (200) OVER COPPER |
| Contact Finish - Termination | TIN (200) OVER COPPER |
| Contact Gender | Male |
| Contact Material | Brass, Gold |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 19.4mm |
| DIN Conformance | No |
| ELV | Compliant |
| Empty Shell | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| IEC Conformance | No |
| Lead Free | Lead Free |
| Manufacturer Series | 5569 |
| Material | Nylon |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Max Operating Temperature | 105°C |
| MIL Conformance | No |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Mixed Contacts | No |
| Mount | Through Hole, Board |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Option | General Purpose |
| Orientation | Right Angle |
| Packaging | Bag |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | Mini-Fit® Jr™ 5569 |
| Shell Material | POLYAMIDE66 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-30-0060 Datasheet
Download the complete datasheet for Molex 39-30-0060 to view detailed technical specifications.
