3-circuit, right-angle male header with a 4.2mm pitch, designed for through-hole mounting. Features brass contacts with tin plating, rated for 13A current and 600V voltage, supporting wire gauges from 20 to 16 AWG. Operates within a temperature range of -40°C to 105°C, with UL94 V-0 flammability rating and low halogen content. Compliant with ELV, Reach SVHC, and RoHS standards.
Voltage Rating600V
Current Rating13A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-30-3032 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 13A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 600 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 5569 |
| Termination | Through Hole |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-30-3032 Datasheet
Download the complete datasheet for Molex 39-30-3032 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

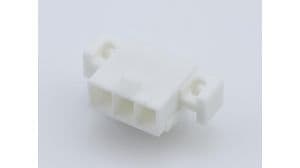

Product Images
