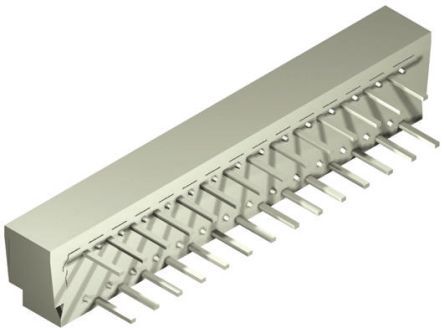

Right-angle, 5-position female socket connector with a 2.5mm pitch and 1.25mm wire-to-board interface. Features tin-plated bronze contacts for 1A current and 200V voltage rating. Constructed with PBT, Polyester, and Polybutylene actuator material, housing a natural color. Operates within a -20°C to 80°C temperature range and boasts a UL94 V-0 flammability rating. Termination is via solder, designed for straight wire/cable types.
Voltage Rating200V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 39-53-2054 technical specifications.
General
Actuator Material
PBT, Polyester, Polybutylene
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
9.8mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Natural
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Number of Circuits
5
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Right Angle
Package Quantity
1500
Packaging
Tray
Pitch
2.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
5597
Stackable
No
Termination
Solder
Voltage Rating
200V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
