2-position, 3.5mm pitch, vertical ZIF/LIF connector with solder termination. Features copper contacts with tin/nickel plating, rated for 17.5A and 300V AC. Operates between -30°C and 85°C, with a UL94 V-0 flammability rating and low halogen content. Through-hole mounting with a black housing.
Voltage Rating300V
Current Rating17.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39357-0002 technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Tin, Nickel
Current Rating
17.5A
Depth
7.29mm
Flammability Rating
UL94 V-0
Gender
Male
Halogen Free
Low Halogen
Height
8.51mm
Housing Color
Black
Lead Free
Lead Free
Length
3.5mm
Max Current Rating
17.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Vertical
Pitch
3.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
39357
Termination
Solder
Voltage Rating
300V
Weight
0.04374oz
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
28AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Molex 39357-0002 Datasheet
Download the complete datasheet for Molex 39357-0002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

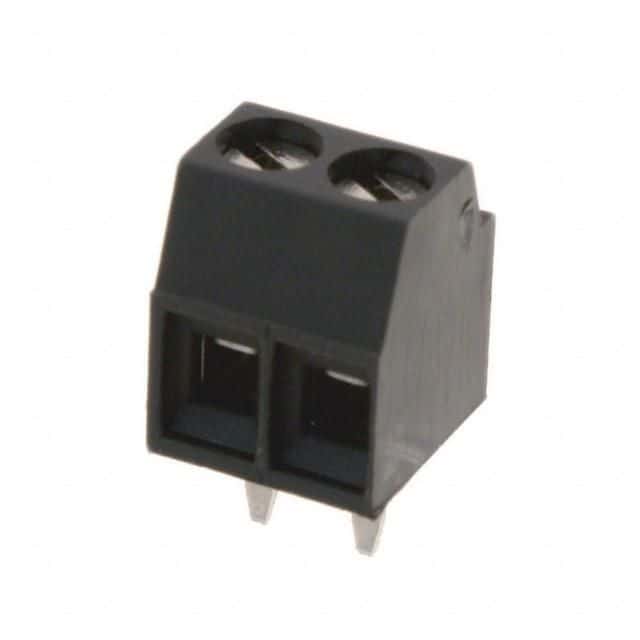

Product Images
