This 4-position right angle FFC/FPC connector features a voltage rating of 300V and a current rating of 8A. It has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. The connector is lead free and meets the UL94 V-0 flammability rating. It is suitable for use in applications where low halogen emissions are required.
Voltage Rating300V
Current Rating8A
MountingCable
Quick Jump:
Technical Specifications
Molex 39500-0004 technical specifications.
General
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 960 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Reach SVHC Compliant | Unknown |
| Series | 39500 |
| Termination | Screw |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39500-0004 Datasheet
Download the complete datasheet for Molex 39500-0004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

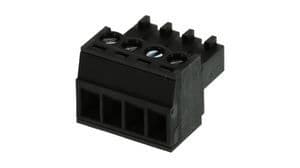

Product Images
