2-circuit, 3.50mm pitch vertical PCB header with a male gender and through-hole mounting. Features brass contacts with tin plating, a 300V max voltage rating, and an 8A current rating. Housing is black, UL94 V-0 flammability rated, and operates between -40°C and 105°C. Compliant with ELV, Lead Free, and REACH SVHC standards, with low halogen content.
Voltage300V
Current8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39501-1002 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 8A |
| Depth | 6.9mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 8.4mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Termination | Solder |
| Voltage | 300V |
| Width | 6.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39501-1002 Datasheet
Download the complete datasheet for Molex 39501-1002 to view detailed technical specifications.
No datasheet is available for this part.

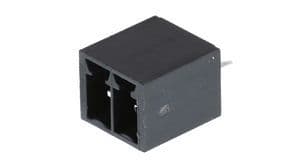

Product Images
