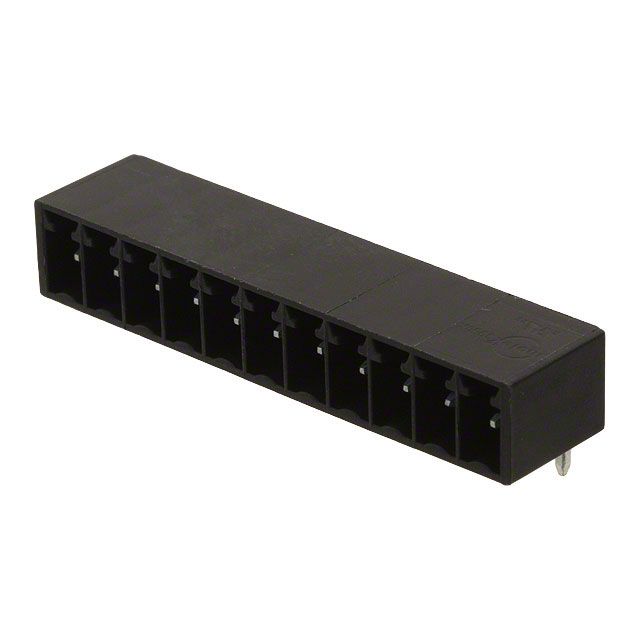

Shrouded header, right-angle, through-hole mount, 11 positions, 3.5mm pitch, 1 row, 1 level, 11 circuits. Features brass contacts with tin plating, rated for 8A current and 300V voltage. Black housing, UL94 V-0 flammability, low halogen, lead-free, and ELV compliant. Operates from -40°C to 105°C.
Voltage300V
Current8A
Voltage Rating300V
Current Rating8A
Quick Jump:
Technical Specifications
Molex 39502-1011 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 39.9mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 11 |
| Number of Contacts | 11 |
| Number of Levels | 1 |
| Number of Positions | 11 |
| Number of Positions Per Level | 11 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Reach SVHC Compliant | Yes |
| Series | Eurostyle™ ESE 39502 |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39502-1011 Datasheet
Download the complete datasheet for Molex 39502-1011 to view detailed technical specifications.
