2-position, 1-row shrouded header for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features a 5.08mm pitch, straight orientation, and top entry with through-hole mounting. Constructed with brass contacts plated in tin, a black UL94 V-0 rated housing, and a maximum operating temperature of 105°C. Rated for 15A current and 300V voltage, with a maximum DC voltage rating of 300.3kV. Accommodates wire/cable up to 12AWG.
Voltage Rating300V
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39531-1002 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 15A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 12.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 300.3kV |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1240 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Reach SVHC Compliant | Unknown |
| Series | 39531 |
| Termination | Solder |
| Voltage Rating | 300V |
| Width | 8.3mm |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39531-1002 Datasheet
Download the complete datasheet for Molex 39531-1002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

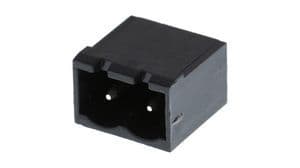

Product Images
