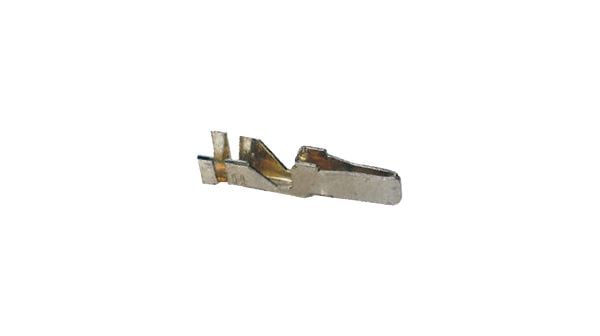

Male signal header with a 2mm pitch, designed for 14-16AWG wire. Features a straight, unshielded orientation and tin-plated copper alloy contacts. Rated for a maximum current of 50A and operates within a temperature range of -40°C to 105°C. This low halogen component is supplied on tape and reel for cable mounting.
Current Rating50A
MountingCable
Quick Jump:
Technical Specifications
Molex 42817-0041 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 50A |
| Depth | 5.94mm |
| Diode Type | PIN |
| Gender | Male |
| Halogen Free | Low Halogen |
| Height | 5.69mm |
| Length | 27.6mm |
| Max Current Rating | 50A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | Mini-Fit Sr |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 42817-0041 Datasheet
Download the complete datasheet for Molex 42817-0041 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
