Six-position, single-row female connector with a 2.54mm pitch, designed for through-hole mounting. Features gold-plated bronze contacts and a black polyester body with a UL94 V-0 flammability rating. Offers a 1.5A current rating and a maximum AC voltage rating of 150V, with a DC rated voltage of 125V. Operates within a temperature range of -40°C to 85°C.
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 42878-6218 technical specifications.
General
| Body Material | Polyester |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.88mm |
| Direction | User Selectable |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 13.97mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Positions Loaded | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1680 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 42878 |
| Shielding | Unshielded |
| Termination | Through Hole |
| Voltage Rating (AC) | 150V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 42878-6218 Datasheet
Download the complete datasheet for Molex 42878-6218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

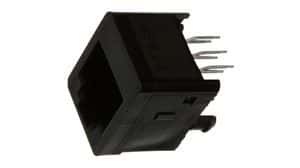

Product Images
