14-circuit, 2-row female receptacle connector with a 3mm pitch, designed for straight, cable mount termination. Features a black nylon insulator with UL94 V-0 flammability rating, supporting a 5A current rating and 250V AC voltage. Operating temperature range from -40°C to 105°C, with lead-free and low halogen compliance. Includes locking mechanism and is RoHS compliant.
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 43025-1400 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 11.56mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 21.85mm |
| Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Cable |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Width | 11.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43025-1400 Datasheet
Download the complete datasheet for Molex 43025-1400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

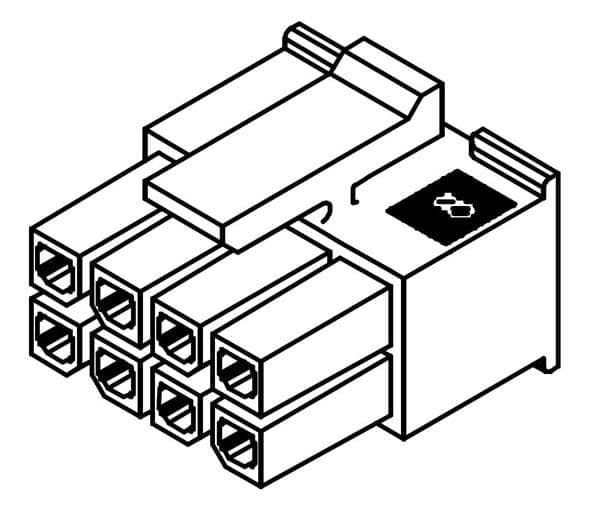

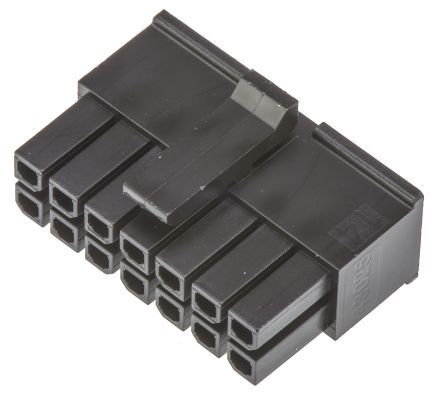

Product Images
