24-position, 2-row female receptacle with straight orientation and 3mm pitch. Features a black polyester insulator, bronze contacts with tin plating, and a 5A current rating. Rated for 250V AC and 600V AC/DC, with a maximum operating temperature of 105°C. Includes locking mechanism and UL94 V-0 flammability rating. Bulk packaged in quantities of 2000.
Voltage Rating250V
Current Rating5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Molex 43025-2400 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 36.85mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Cable, Free Hanging |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Poles | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43025 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Width | 11.56mm |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43025-2400 Datasheet
Download the complete datasheet for Molex 43025-2400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

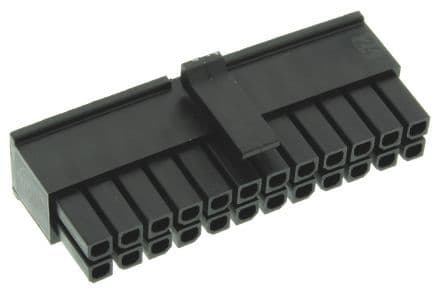

Product Images
