Female signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed with bronze contacts and tin plating, it supports a 5A current rating and 250V voltage rating. Designed for wire gauges from 24AWG to 20AWG, this component operates within a temperature range of -40°C to 105°C. It is RoHS compliant and packaged on tape and reel.
Package0001
Voltage Rating250V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 43030-0001 technical specifications.
General
| Package/Case | 0001 |
| Contact Gender | Female |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 5A |
| Depth | 2.54mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 12000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43030 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43030-0001 Datasheet
Download the complete datasheet for Molex 43030-0001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

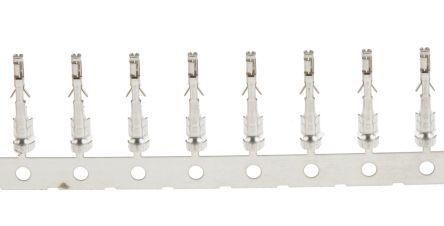

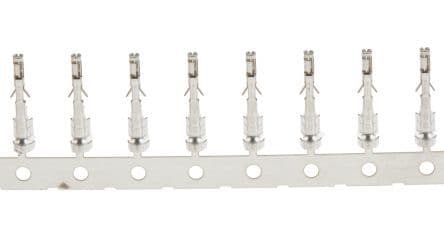

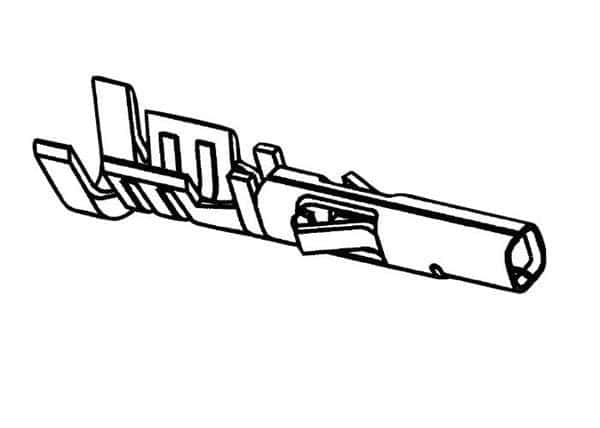

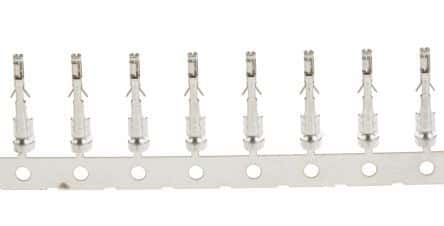

Product Images
