Female signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed with bronze, brass, and tin contact materials, plated with tin to 100µin thickness. Rated for 3A continuous current and 5A maximum, with a voltage rating of 250V AC/DC. Operates within a temperature range of -40°C to 105°C, accepting wire gauges from 30AWG to 26AWG. This lead-free, low-halogen component is RoHS compliant.
Resistance0.01R
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 43030-0010 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Bronze, Brass, Tin |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 3A |
| Depth | 2.1mm |
| Gender | Female |
| Halogen Free | Low Halogen |
| Height | 1.91mm |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 3 |
| Orientation | Straight |
| Package Quantity | 12000 |
| Packaging | Bulk |
| Plating Thickness | 100uin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 0.01R |
| RoHS Compliant | Yes |
| Series | Micro-Fit 3.0 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Diameter | 1.52mm |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43030-0010 Datasheet
Download the complete datasheet for Molex 43030-0010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

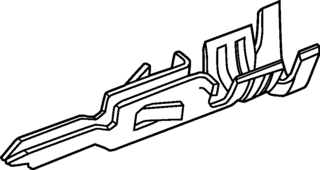

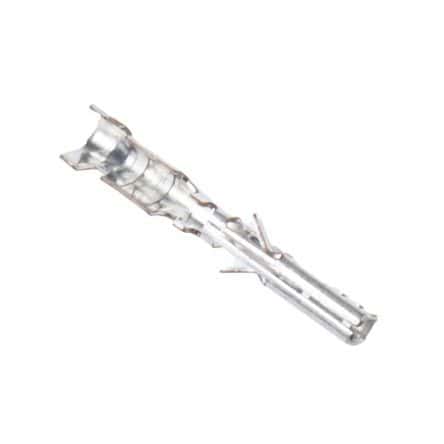

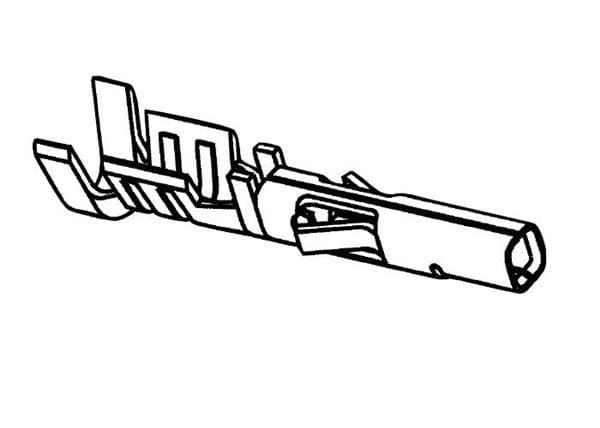

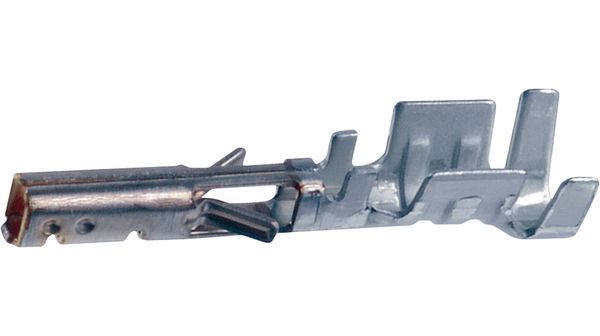

Product Images
