Female signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed with bronze, brass, tin, and gold contact materials, and plated with 30µin gold. Supports a current rating of 3A, with a maximum of 5A, and a voltage rating of 250V DC. Operates within a temperature range of -40°C to 105°C, accommodating wire gauges from 30AWG to 26AWG. This low halogen, lead-free component is RoHS compliant and supplied in bulk packaging.
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 43030-0012 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze, Brass, Tin, Gold
Contact Plating
Gold
Contact Type
Signal
Current Rating
3A
Depth
2.1mm
Gender
Female
Halogen Free
Low Halogen
Height
1.91mm
Lead Free
Lead Free
Length
11mm
Max Current Rating
5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Contacts
3
Orientation
Straight
Package Quantity
12000
Packaging
Bulk
Plating Thickness
30uin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
43030
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Molex 43030-0012 Datasheet
Download the complete datasheet for Molex 43030-0012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

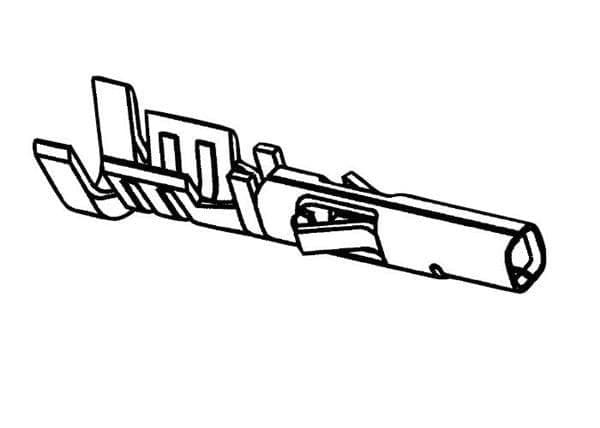

Product Images
