Low halogen, RoHS compliant male pin terminal for crimp termination. Features bronze, brass, and tin contact material with tin plating and 100µin plating thickness. Rated for 3A current and 250V AC/DC, operating between -40°C and 105°C. Accommodates wire gauges from 30AWG to 26AWG with a maximum wire/cable diameter of 1.52mm. Supplied in a bag with a package quantity of 12,000.
Resistance0.01R
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
Molex 43031-0010 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Bronze, Brass, Tin |
| Contact Plating | Tin |
| Contact Type | Pin |
| Current Rating | 3A |
| Gender | Male |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 3 |
| Package Quantity | 12000 |
| Packaging | Bag |
| Plating Thickness | 100uin |
| Reach SVHC Compliant | Unknown |
| Resistance | 0.01R |
| RoHS Compliant | Yes |
| Series | 43031 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Diameter | 1.52mm |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43031-0010 Datasheet
Download the complete datasheet for Molex 43031-0010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

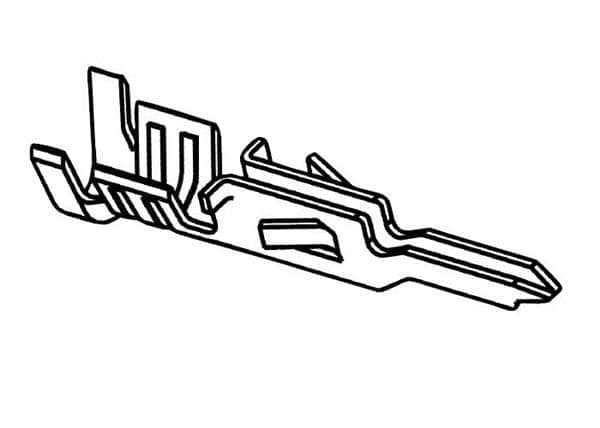

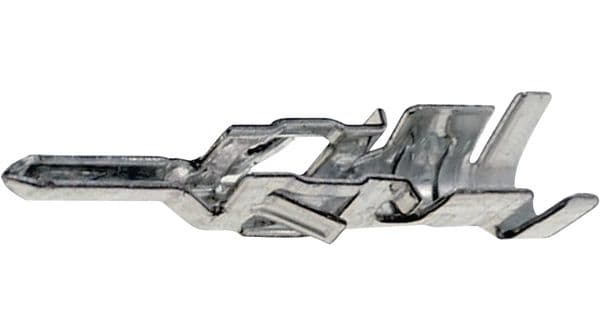

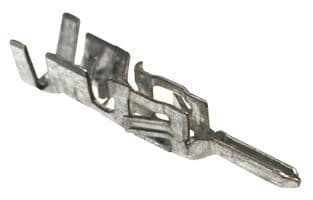

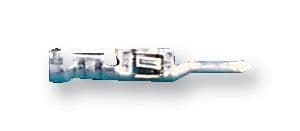

Product Images
