Rectangular power connector featuring 4 contacts and 4 positions in a 2-row configuration. This male receptacle offers a 3mm pitch and 6.86mm row spacing for surface mount termination. Constructed with brass contacts and tin plating, it supports a 5A current rating and a 250V voltage rating. Operating within a -40°C to 105°C temperature range, this black, RoHS compliant component is packaged on tape and reel.
Voltage Rating250V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 43045-0415 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 5A |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Pitch | 3mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 6.86mm |
| Series | 43045 |
| Termination | SMD/SMT |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-0415 Datasheet
Download the complete datasheet for Molex 43045-0415 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

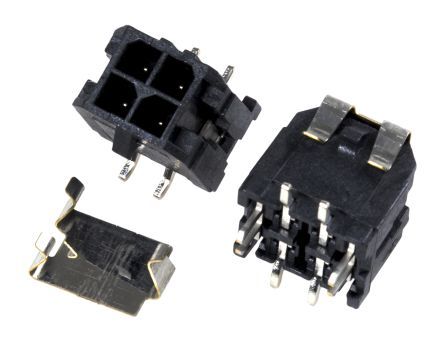

Product Images
