6-position, 2-row wire-to-board header with 3mm pitch. Features right-angle, through-hole mounting and solder termination. Male gender with brass and bronze contacts plated in gold. Rated for 5A current and 600V voltage, with a maximum operating temperature of 105°C. Housing is black, UL94 V-0 flammability rated, low halogen, and glow wire compliant. Packaged in trays of 1728 units.
Package0622
Voltage Rating600V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43045-0622 technical specifications.
General
| Package/Case | 0622 |
| Color | Black |
| Contact Material | Brass, Bronze |
| Contact Plating | Gold |
| Current Rating | 5A |
| Depth | 10.16mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Height | 11.18mm |
| Housing Color | Black |
| Length | 20.62mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1728 |
| Packaging | Tray |
| Pitch | 3mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43045 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-0622 Datasheet
Download the complete datasheet for Molex 43045-0622 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

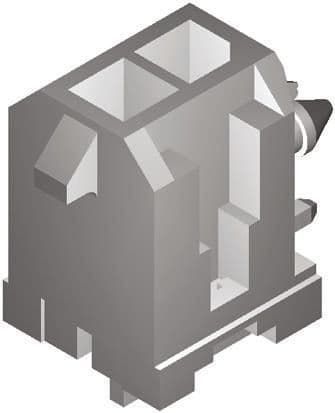

Product Images
