18-position, 2-row male header with a 3mm pitch and 3mm row spacing. Features brass contacts with tin plating, rated for 5A current and 600V voltage (250.25kV DC max). Through-hole mounting with solder termination, operating from -40°C to 105°C. Glow wire compliant and low halogen, this RoHS compliant component is supplied in trays of 720.
Voltage Rating600V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43045-1827 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 5A |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 720 |
| Packaging | Tray |
| Pitch | 3mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43045 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-1827 Datasheet
Download the complete datasheet for Molex 43045-1827 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

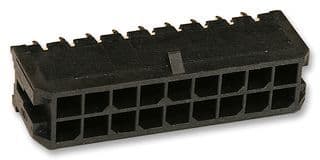

Product Images
