Rectangular power connector featuring 20 male contacts with solder termination. This vertical receptacle offers a 3mm pitch and 2 rows, accommodating 20 positions. Constructed from black polyester housing, it boasts a 5A current rating and a maximum operating temperature of 105°C. The brass contacts with tin plating ensure reliable power transmission, with a voltage rating of 600V. This component is UL94 V-0 flammability rated, glow wire compliant, and lead-free.
PackageSMC
Voltage Rating600V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43045-2012 technical specifications.
General
| Package/Case | SMC |
| Color | Black |
| Contact Material | Brass, Tin |
| Contact Plating | Tin |
| Current Rating | 5A |
| Depth | 8.77mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Height | 9.91mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 3mm |
| Length | 34.15mm |
| Material | Polyester |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Poles | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Supply Voltage | 250V |
| Orientation | Vertical |
| Package Quantity | 648 |
| Packaging | Tray |
| Pitch | 3mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43045 |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-2012 Datasheet
Download the complete datasheet for Molex 43045-2012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

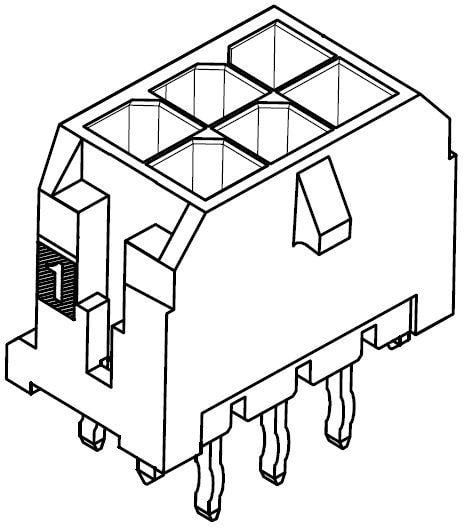

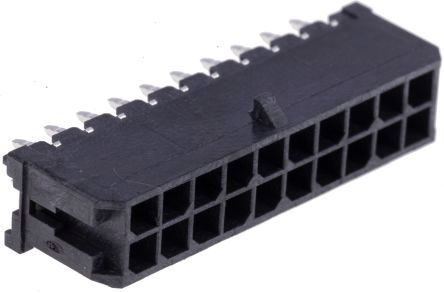

Product Images
