Rectangular power connector featuring 6 male contacts with solder termination. This through-hole mount receptacle offers a 600V DC rated voltage and an 18A current rating. Constructed with brass contacts plated in tin, it boasts a black nylon housing with a UL94 V-0 flammability rating. Operating within a -40°C to 75°C temperature range, this RoHS compliant component is designed for vertical mounting.
PackageSMC
Voltage Rating600V
Current Rating18A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43160-0106 technical specifications.
General
| Package/Case | SMC |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 18A |
| Diameter | 7.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Housing Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 10 |
| Packaging | Tray |
| Pitch | 0.295inch |
| RoHS Compliant | Yes |
| Series | Sabre™ 43160 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43160-0106 Datasheet
Download the complete datasheet for Molex 43160-0106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

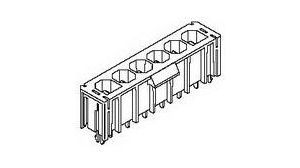

Product Images
