Shielded, right-angle RJ45 connector with 8 positions and 8 contacts, featuring gold-plated bronze and brass contacts. This low-profile, through-hole mount connector has a 1.5A current rating and 125V voltage rating, suitable for PCB applications. Its black housing is constructed from UL94 V-0 rated material, operating within a temperature range of -40°C to 70°C.
Voltage Rating125V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43202-8927 technical specifications.
General
Color
Black
Contact Material
Bronze, Brass
Contact Plating
Gold
Current Rating
1.5A
Depth
18.64mm
Flammability Rating
UL94 V-0
Gender
Female
Height
13.34mm
Housing Color
Black
Length
16.36mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Orientation
Right Angle
Package Quantity
560
Packaging
Tray
Pitch
2.54mm
RoHS Compliant
Yes
Series
43202
Shielding
Shielded
Termination
Solder
Voltage Rating
125V
DC Rated Voltage
125V
Width
14.61mm
Compliance
RoHS
Compliant
Datasheet
Molex 43202-8927 Datasheet
Download the complete datasheet for Molex 43202-8927 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

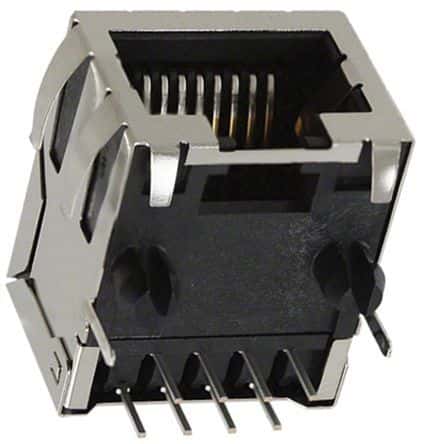

Product Images
