Shielded, right-angle, female modular connector featuring 64 gold-plated bronze and brass contacts on a 2.54mm pitch. This black, UL94 V-0 rated jack offers a 1.5A current rating and 150V AC voltage rating, operating between -40°C and 80°C. Designed for through-hole board mounting, it includes a locking mechanism and solder terminals.
Current Rating1.5A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
Molex 43223-8182 technical specifications.
General
Body/Shell Style
JACK
Color
Black
Contact Gender
Female
Contact Material
Bronze, Brass
Contact Plating
Gold
Current Rating
1.5A
Depth
20.57mm
DIN Conformance
No
Empty Shell
No
Filter Feature
No
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
IEC Conformance
No
Lead Free
Lead Free
Length
114.3mm
Manufacturer Series
43223
Max Operating Temperature
80°C
MIL Conformance
No
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mixed Contacts
No
Mount
Through Hole, Board
Mounting Style
RIGHT ANGLE
Number of Contacts
64
Number of Ports
8
Number of Positions
8
Number of Positions Loaded
64
Number of Rows
1
Option
General Purpose
Orientation
Right Angle
Packaging
Tray
Pitch
2.54mm
RoHS Compliant
Yes
Series
43223
Shell Material
Brass
Shielding
Shielded
Termination
Solder
Voltage Rating (AC)
150V
Compliance
RoHS
Compliant
Datasheet
Molex 43223-8182 Datasheet
Download the complete datasheet for Molex 43223-8182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

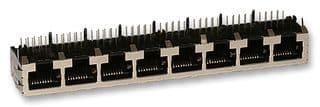

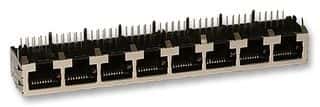

Product Images
